ffuuss one

hand dryer

The combination of creativity and technology for an optimal user experience.

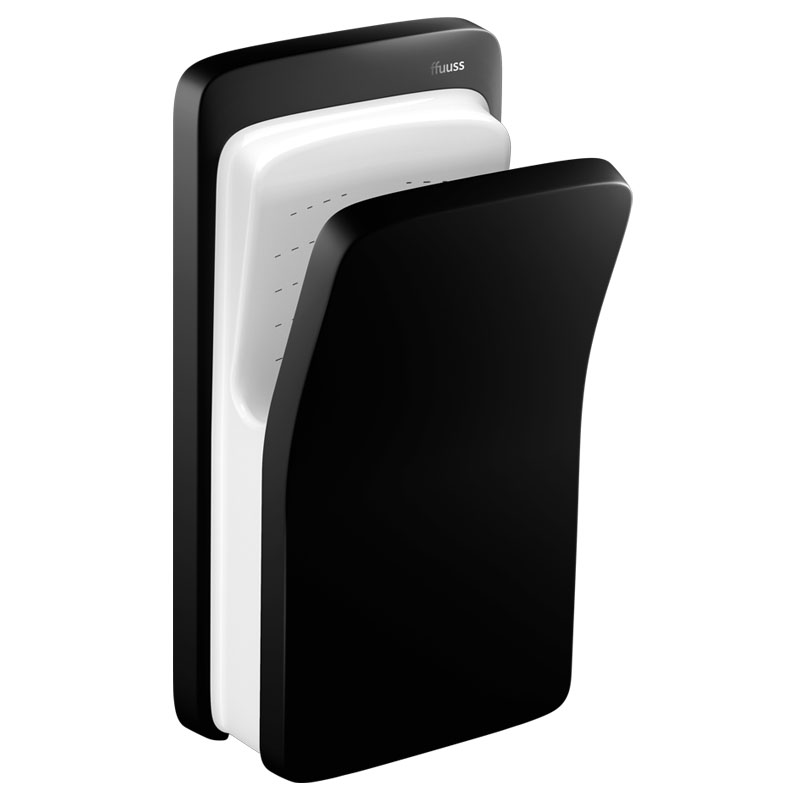

Black Matte

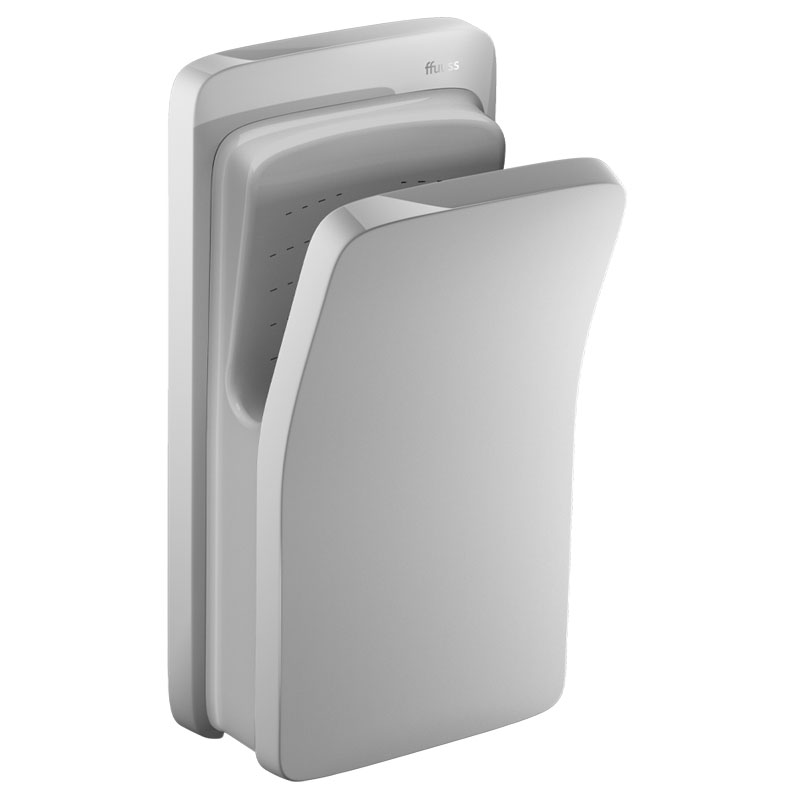

Light Grey

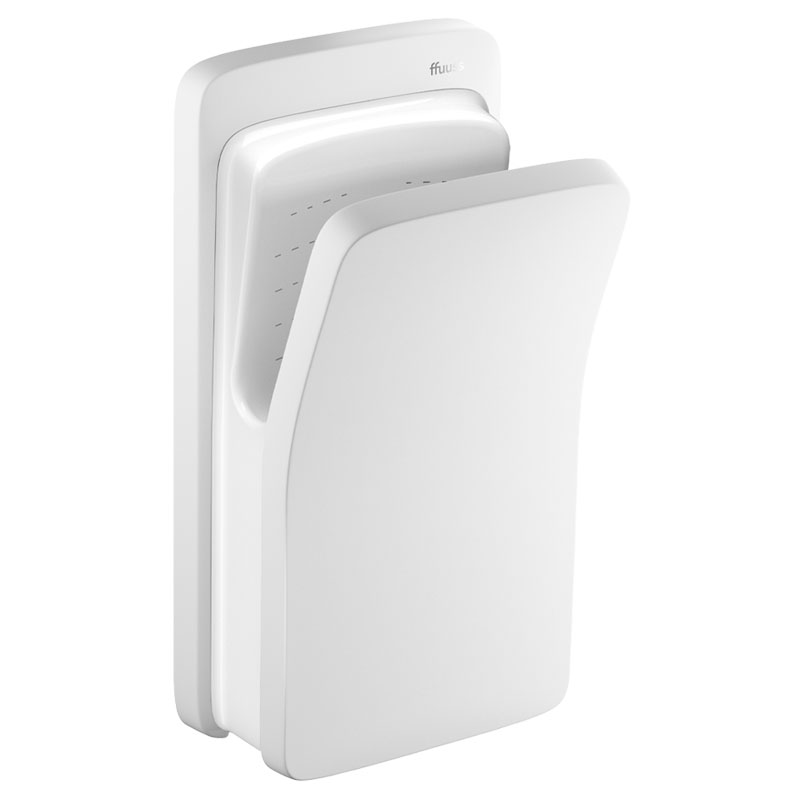

White

Features

Performance
  • Automatic activation
  • Approx hand drying time: 13-15 sec
  • Blocking time: 25 sec
  • Airflow: Up to 73 l/s (19,3 gal/s)
  • Preheat air heating system*

Easy Maintenance with Laser Diagnosis Hand dryer always ready for your customers Channelling and water collection

Remote control by Telemetry System
Detection and diagnosis of breakdowns
* Patentado por ffuussTM
Savings Save 85% of energy consumption thanks to our engine developed for ffuuss

Hygiene and Technology
  • HEPA Filter
  • Treatment with antibacterial additives
  • Chromotherapy
  • 108 air vents
  • Cleaner washrooms with our curtain effect *
  • Drying efficiency with Air speed

Save money on supplies
Hand dryers do not need daily paper refills! Hepa filter should be replaced after 40,000 drying cycles, or yearly

Do it yourself!

Interior color
Exterior color
Top color
Gloss
Matte
Bottom color
Sample images
Upload image
+
-
OK
Edit
Delete

Do you need a specific Pantone or RAL color?
Get in contact with us and we will prepare it for you.

CONTACT
DOWNLOAD IMAGE
  • Exterior color
  • Interior color
  • Top color
  • Bottom color
  • Image

Specifications

Electric system
Input voltage: 220-240V 120V
Frecuencia: 50/60Hz 60Hz
Nominal power: 1100 W 1100 W
Corriente: 5A 9A
Type of motor: Universal con Preheat* Universal con Preheat*
Motor speed: 23000 RPM 21500 RPM
Working temperature: 40ºC/104ºF 40ºC/104ºF

*Patented by ffuuss™ Available on ffuuss one Premium models.

Manufacturing

Cover material: ABS
Treated with Biomaster Silver Ions antibacterial additive
Finish: Various colours
Mounting mooring: Galvanized steel
Water inlet protection: IPX2
Filter: HEPA H13

Standard warranty

5 years for parts and 1 year for labour (see conditions)

Operation

Approx hand drying time: 13-15 seconds
Blocking time: 25 seconds
Airflow: Up to 73 l/s (19,3 gal/s)
Activation with capacitative sensor

Logistics

Net weight: 7.7 Kg (16,2 lb)
Assembled weight: 9.2 Kg (20,5 lb)
Box dimensions: 690mm / 360mm / 285mm ( H27,16” W14,17” D11,22” )

Regulations

This device complies with the following standards:
2014/53/EU 2014/30/EU 2014/35/EU 2012/19/EU 2011/65/EU 1275/2008.2009/125/EU
UL 499 CSA-C22.2 No. 36-08
IEC 60825-1 Ed.3 (2014)

Others

This unit has Bluetooth technology
Product Laser Classe 1
NOTE:
ffuuss™ reserves the right to make changes without prior notice.

Downloads

  • User Manual
  • Catalog
  • Technical specifications
  • Maintenance
  • Installation
  • Telemetry System
